Orthographic projection first angle with hidden lines exercise 9

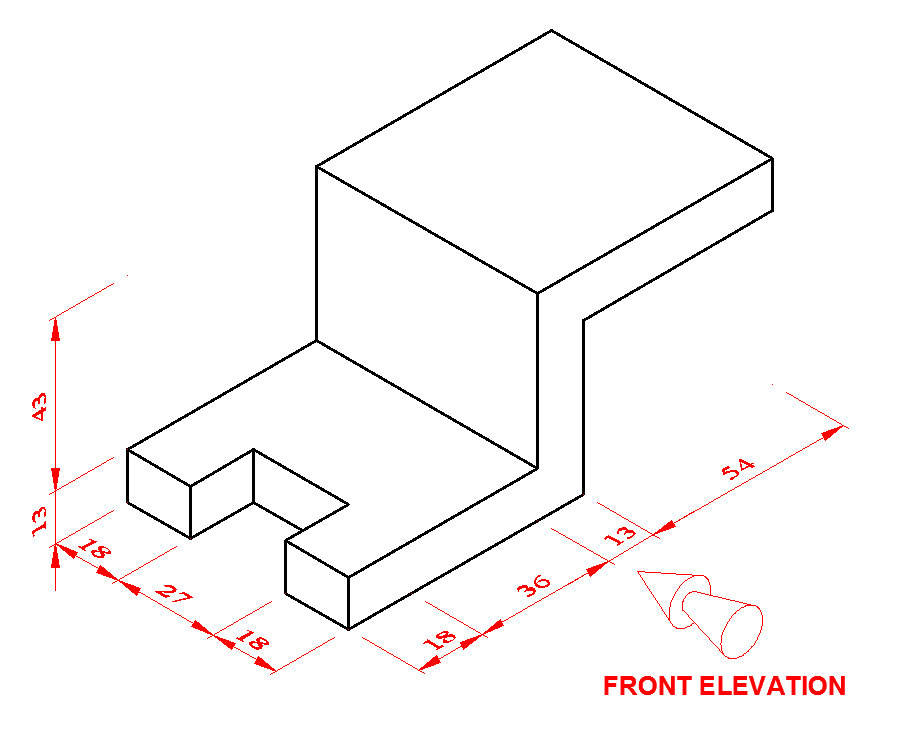

In first angle orthographic projection, draw the:
  1. Front view from the direction of the arrow shown,
  2. End view
  3. Plan
  4. First Angle symbol

hidden line 1st angle proj

If you have difficulty placing the views and spacing them neatly, you can use the starter sheet provided to help you. As you improve, try completing the drawing without the use of the starter sheet.

To help you visualize the object better you can rotate the object yourself:

The parts of the surface that are seen from the plan view are colour coded red, the parts that are seen from the front view are colour coded green, and the parts that are seen from the end view are colour coded blue.

Download the starter sheet in PDF version (A4)
