Isometric projection exercise 1

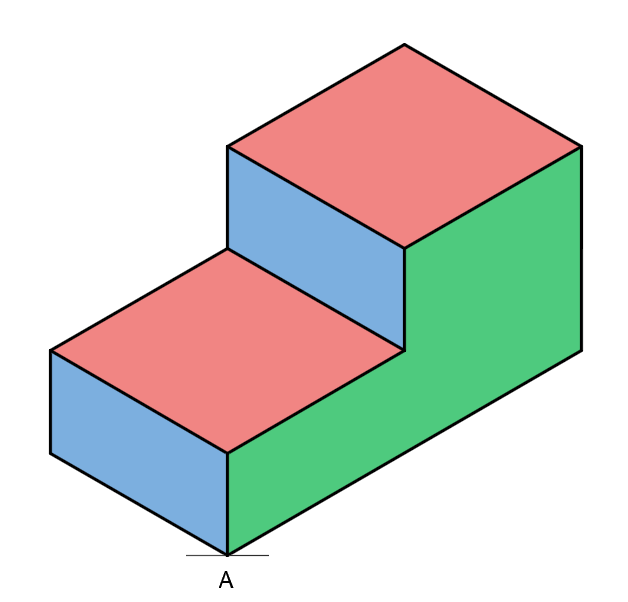

Draw the following block in isometric projection using instruments. Additionally you may colour the different planes using three colours.
Download the starter sheet in PDF version (A4)
