Orthographic to pictorial exercise 11

Use the space on the answer sheet to draw a freehand sketch of the object in any pictorial projection. Then draw the same block using instruments. You can chose between isometric, oblique or planometric projection for your answer.

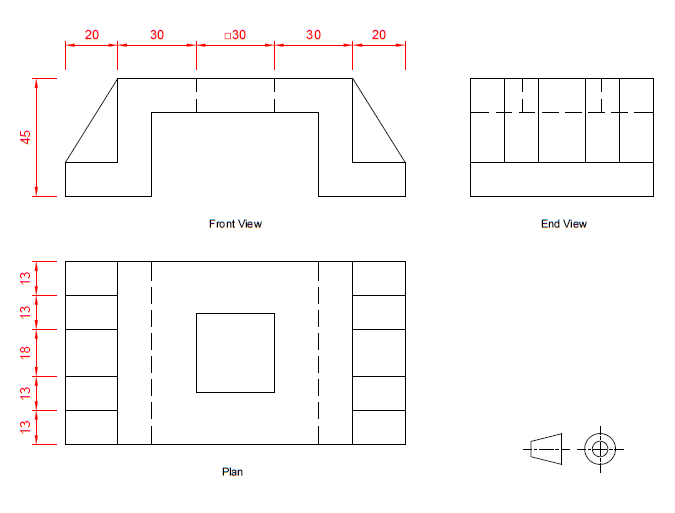

ortho to picto with hidden lines

Download the starter sheet in PDF version (A4)
