Isometric projection exercise 8

Draw the following block in isometric projection using instruments. Additionally you may colour the different planes using three colours and the sloping surfaces using a fourth colour.

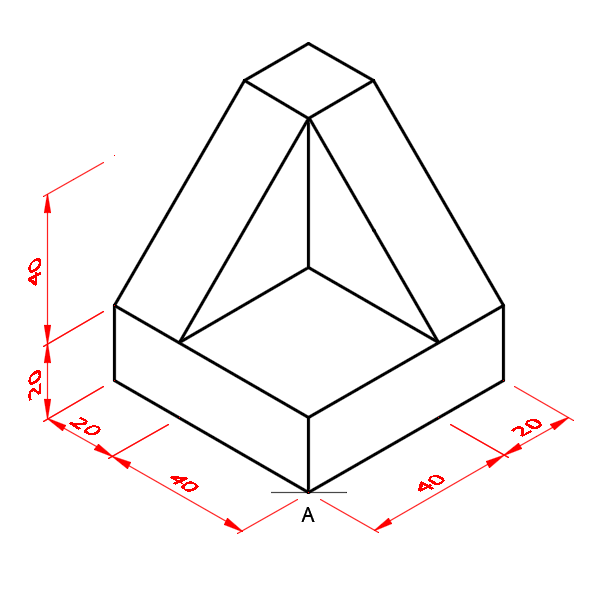

isometric block with slopes

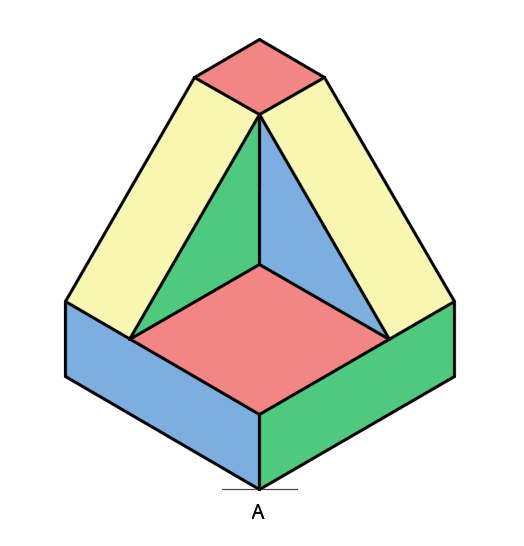

isometric projection sloped object

Download the starter sheet in PDF version (A4)
