Isometric projection exercise 6

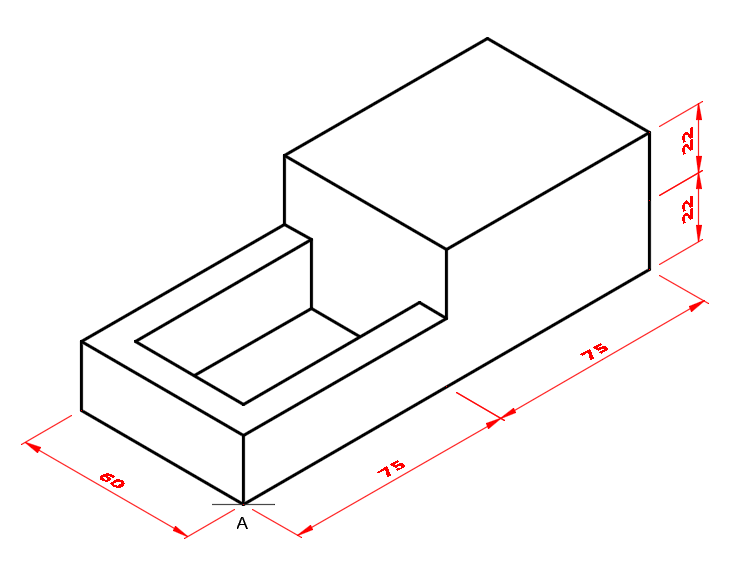

Draw the following block in isometric projection using instruments. Additionally you may colour the different planes using three colours.

isometric exercise with holes

isometric projection straight lines block

Download the starter sheet in PDF version (A4)
