Isometric projection exercise 11

Draw the following block in isometric projection using instruments. Additionally you may colour the different planes using three colours and the sloping surfaces using a fourth colour.

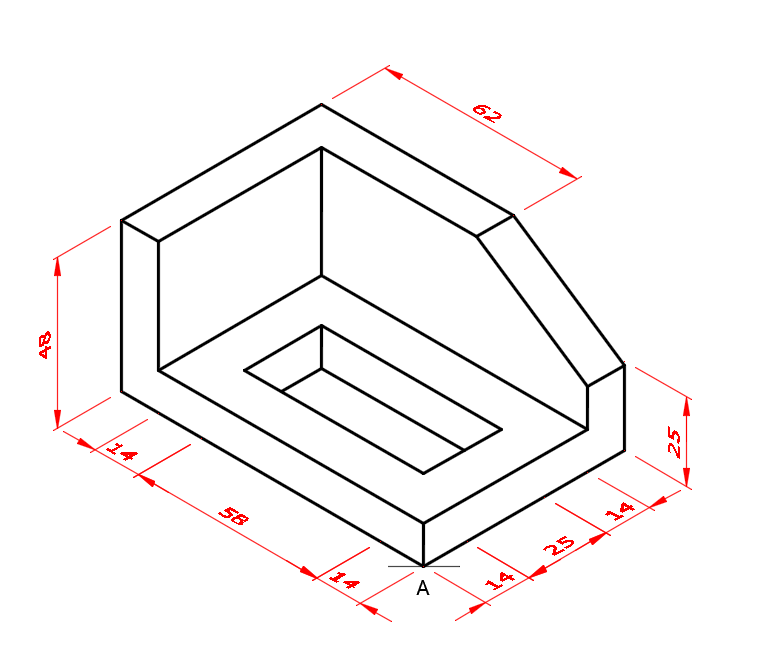

sloping object sith slot

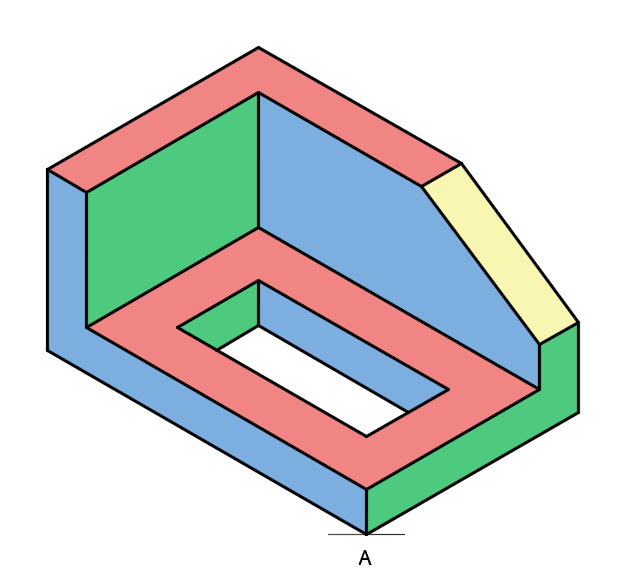

isometric slope and slot

Download the starter sheet in PDF version (A4)
