Isometric projection exercise 10

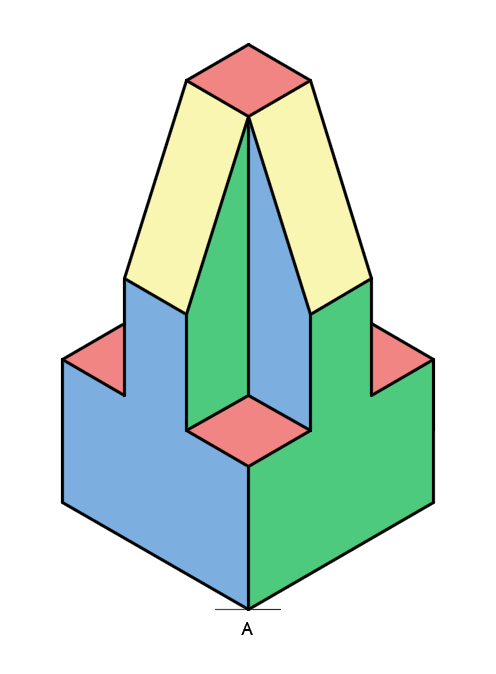

Draw the following block in isometric projection using instruments. Additionally you may colour the different planes using three colours and the sloping surfaces using a fourth colour.

sloping object in 3d

isometric slope

Download the starter sheet in PDF version (A4)
